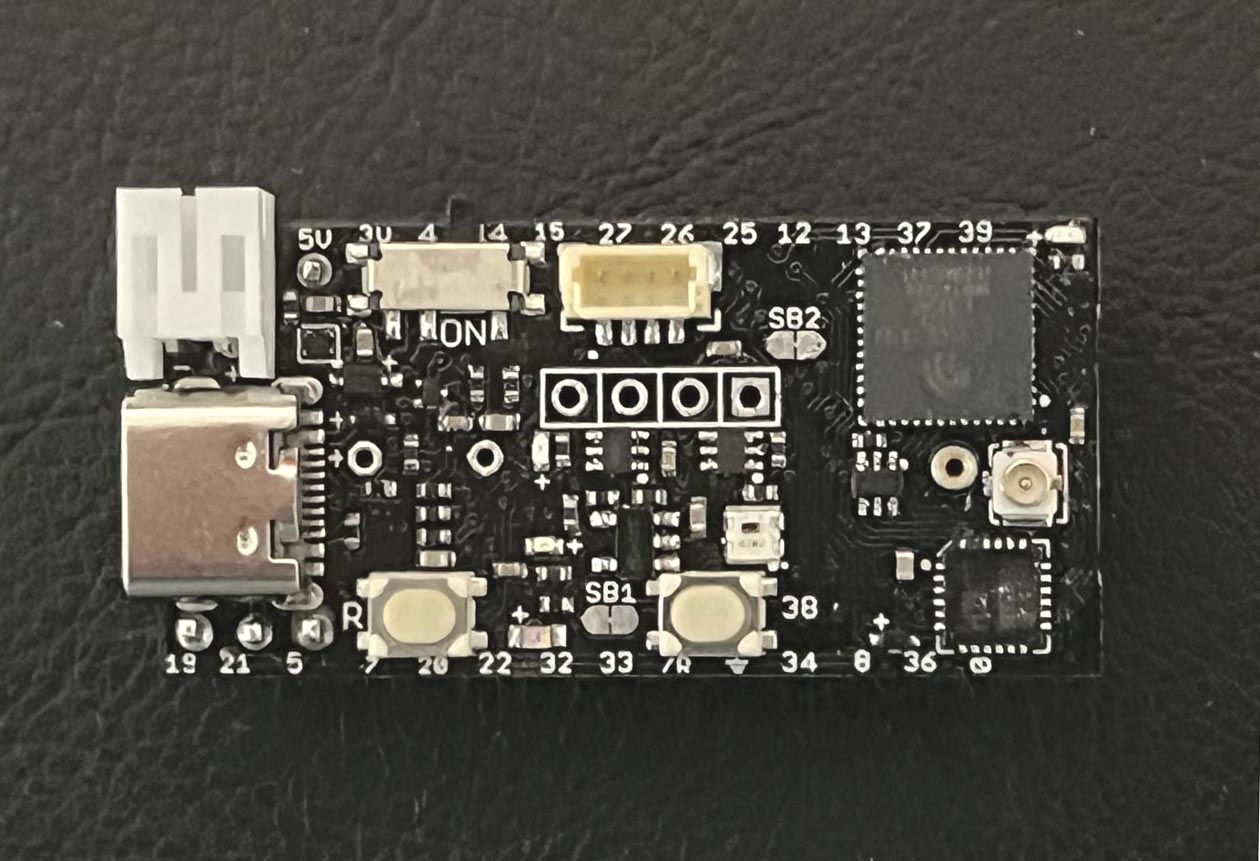

NanoboyPICO-V3-02 features:

1. The newest ESP32 PICO chip, PICO-V3-02.

2. 32-bit 240 MHz Dual Core, 8 MB internal flash and 2 MB internal PSRAM.

3. 2.4 GHz Wifi, 802.11b/g/n and Bluetooth BLE 4.2

4. 3.3V, 700mA LDO.

5. The reversing current blocking diode D2 (BAT20J) is rated at 1A with low leakage current.

6. 22 GPIOs including 4 JTAG pins are broken out.

7. Standard WS2812B RGB. The RGB can be turned off when it's not in use. It will extend battery life.

8. Light sensor. It can be turned off when it's not in use. It will extend battery life.

9. 5V power LED indicator and 5V presence detection.

10. User LED and user pushbutton switch.

11. Active buzzer for an audible indicator (not included).

12. 0.96" 128x64 OLED display (not included).

13. U.FL ANT or Whip ANT offers greater receiving sensitivity for Wi-Fi communication.

14. Larger RESET pushbutton does not hurt your finger.

15. On board QWIIC connector with power on/off control for external sensors.

16. Includes a set of low profile male and female headers and a 2-pin JST LiPo battery connector.

17. Size: 1.557" X 0.762" or 39.55mm X 19.35mm.

18. Pin spacing: X--0.1", Y--0.6".

Unique features on the new NanoboyPICO-V3-02 board

1. A digital switch is added to turn off the battery level test circuit after the test is done. It will reduce deep sleep current significantly.

2. With a Low Pass Filter, the battery charge status LED does not flicker when a battery is not connected.

3. With an ON/OFF power switch, the battery does not need to be unplugged. At the end of day, you can just turn off this switch and do not need to unplug the JST battery connector and the USB cable. The power LED will still be on as long as the USB cable is plugged in, but it will only draw a very insignificant amount of current from the USB hub. No current will be flown out from the battery.

4. Able to play the flappy bird game and other simple video games.

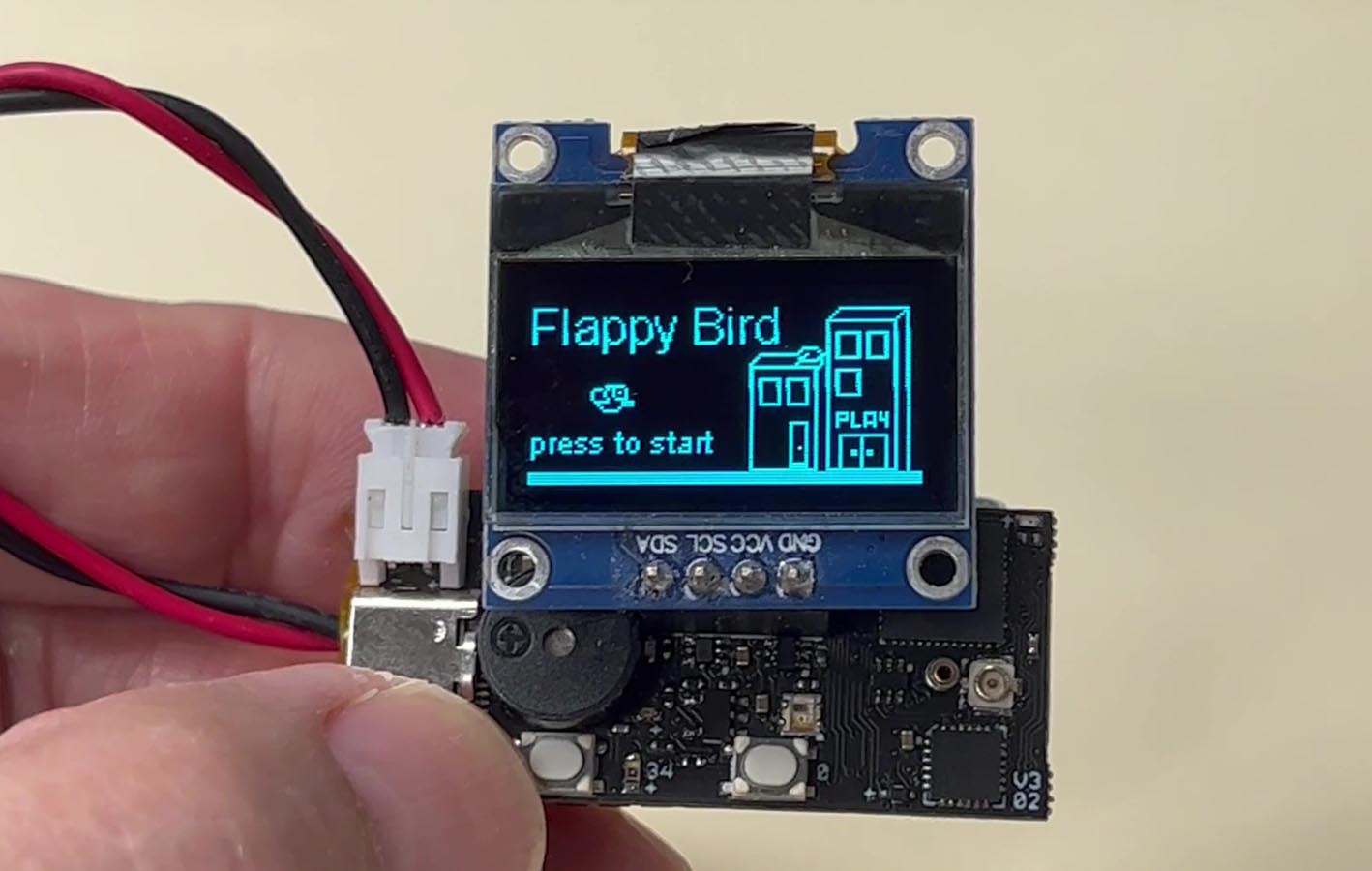

Play flappy bird game

NanoboyPICO-V3-02 assembly Instructions
