All example programs
tested with Arduino IDE 1.8.19 and Espressif 2.0.9.
Arduino Installation
The NanoboyPICO-V3-02 is not shown on the Arduino board list,
but you can use it as a
Feather
ESP32 V2
board.
In Arduino IDE click Tools-->Board,
then select the Adafruit's
Feather
ESP32 V2
for using
the NanoboyPICO-V3-02.
Driver for CP2104 USB to UART bridge
https://www.silabs.com/developers/usb-to-uart-bridge-vcp-drivers?tab=downloads
Diver for CH9102F USB to UART bridge https://learn.adafruit.com/how-to-install-drivers-for-wch-usb-to-serial-chips/windows-driver-installation
ESP32
course

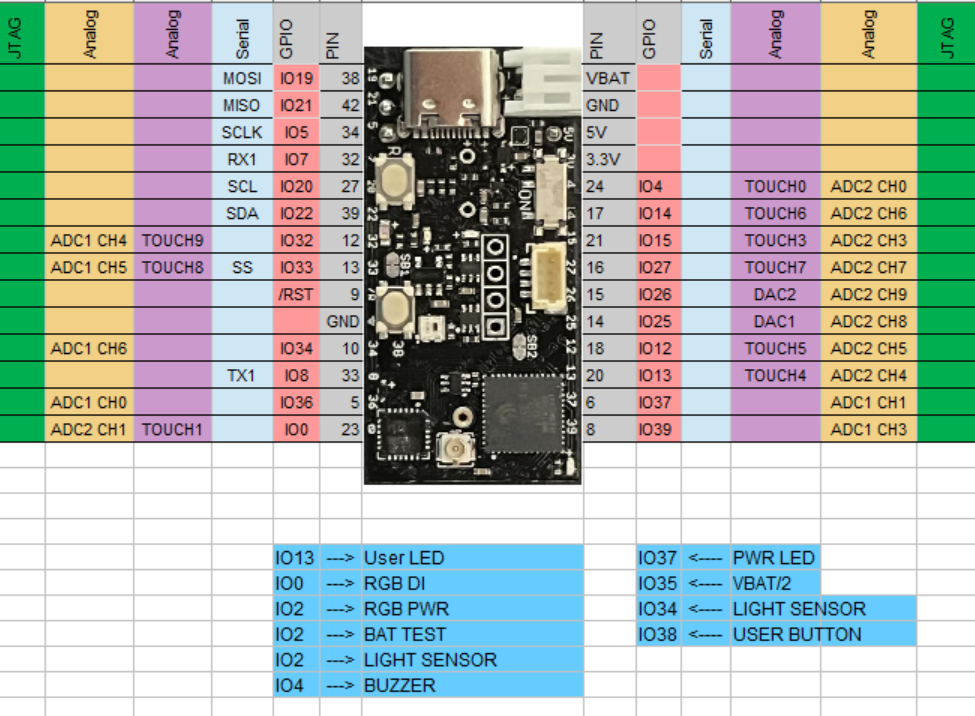

NanoboyPICO-V3-02 Pinmap
Example Programs:
We
added a blinking LED to indicate the start of a WiFi
scan. After testing many different antennas we feel that
the whip antenna offers a high signal strength and
wide coverage with no extra cost. We decided to use the whip antenna
on this board.
You
can compare it with all other ESP32 PICO-V3-02 boards that you may have, you
will find out how good the whip antenna is.
The
board also includes a U.FL antenna connector. If you
don't like to use the whip antenna, you can purchase a
U.FL antenna instead and plug it in.
|
