Features:

• 16X2 LCD display module with LED backlight. SPI interface or 4-bit parallel interface selectable
• 4-digit, 7-segment display module for learning multiplexing technique
• 4 X 4 keypad
• Four data LEDs
• Four pushbutton switches
• Speaker
• Temperature sensor
• Light sensor
• Potentiometer for analog input
• 4 servo or relay outputs
• 4 logic probes
• I²C based 12-bit DAC for generating analog waveforms
• High efficiency dual H-Bridge for controlling two DC motors or one stepper motor
• Header for SPI based 2.2" TFT display (the TFT display is not included)
• Header for I²C based 0.96", 128X64, OLED display (the OLED display is not included)
• Header for I²C based DS3231 Real Time Clock module (the RTC module is not included)
• Header for MCP2551 CAN module (the CAN module is not included)
• MicroSD slot (Memory card is not included)
• Auto VCC switching between 3.3V and 5V for system power
• 5V and 3.3V voltage LED indicators for system power
• Fast prototyping with on-board solderless breadboard
• Can be used as a universal prototype system for any microcontroller, works for 3V or 5V controllers
• Fully debugged program examples are available for downloading from Professor Mazidi's web site
• PCB size: 6.6" X 5.8"

Options:

• MCP2551 CAN module
• DS3231 Real Time Clock module
• 2.2" TFT display
• 0.96" OLED display

MSRP:  $139,  Educational price:  $125

The Tiva Launchpad is not included in the price.

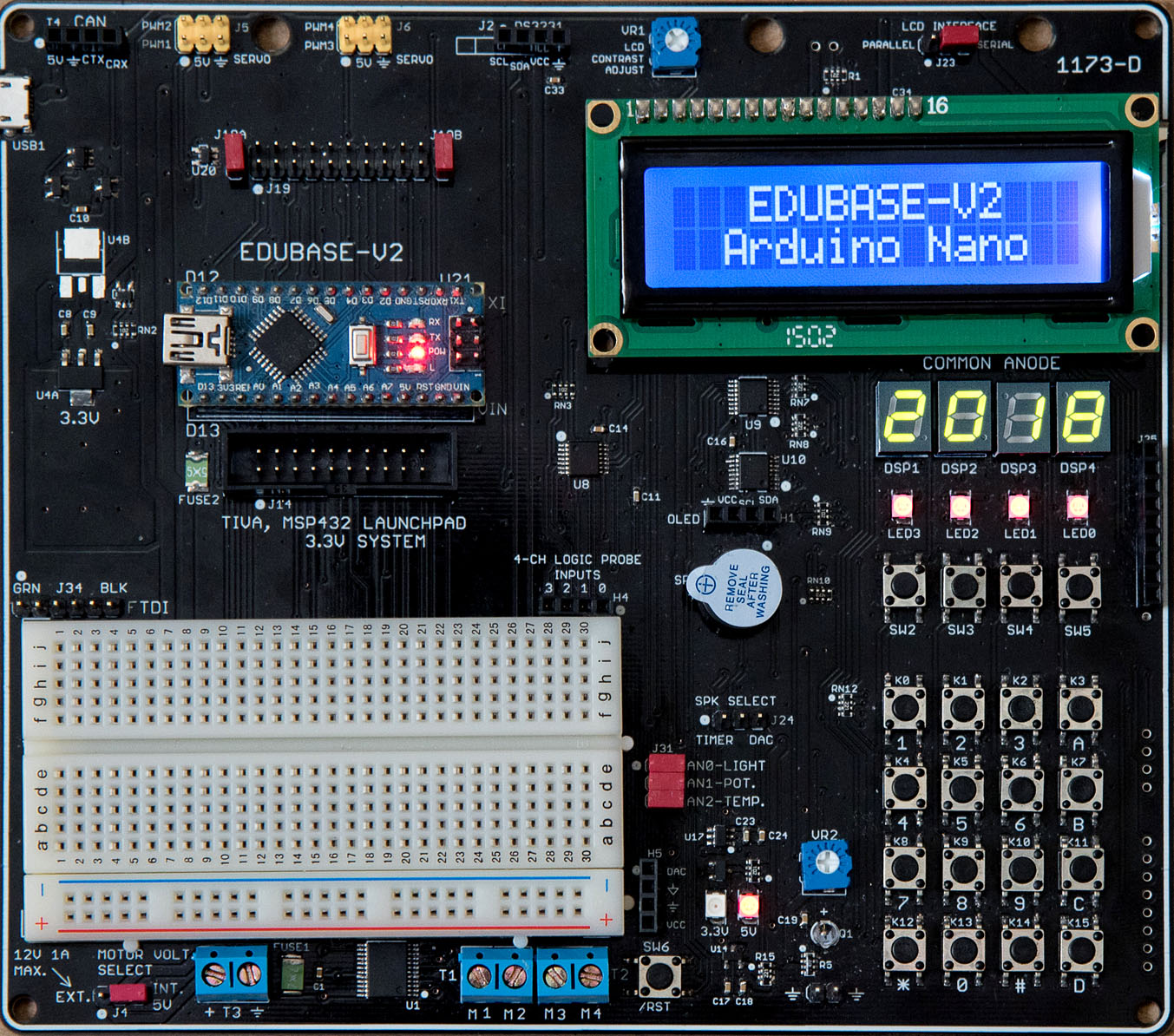

 EduBase-V2 for TI ARM
Tiva & msp432 Launchpads

EduBase-V2 for
Arduino Nano
