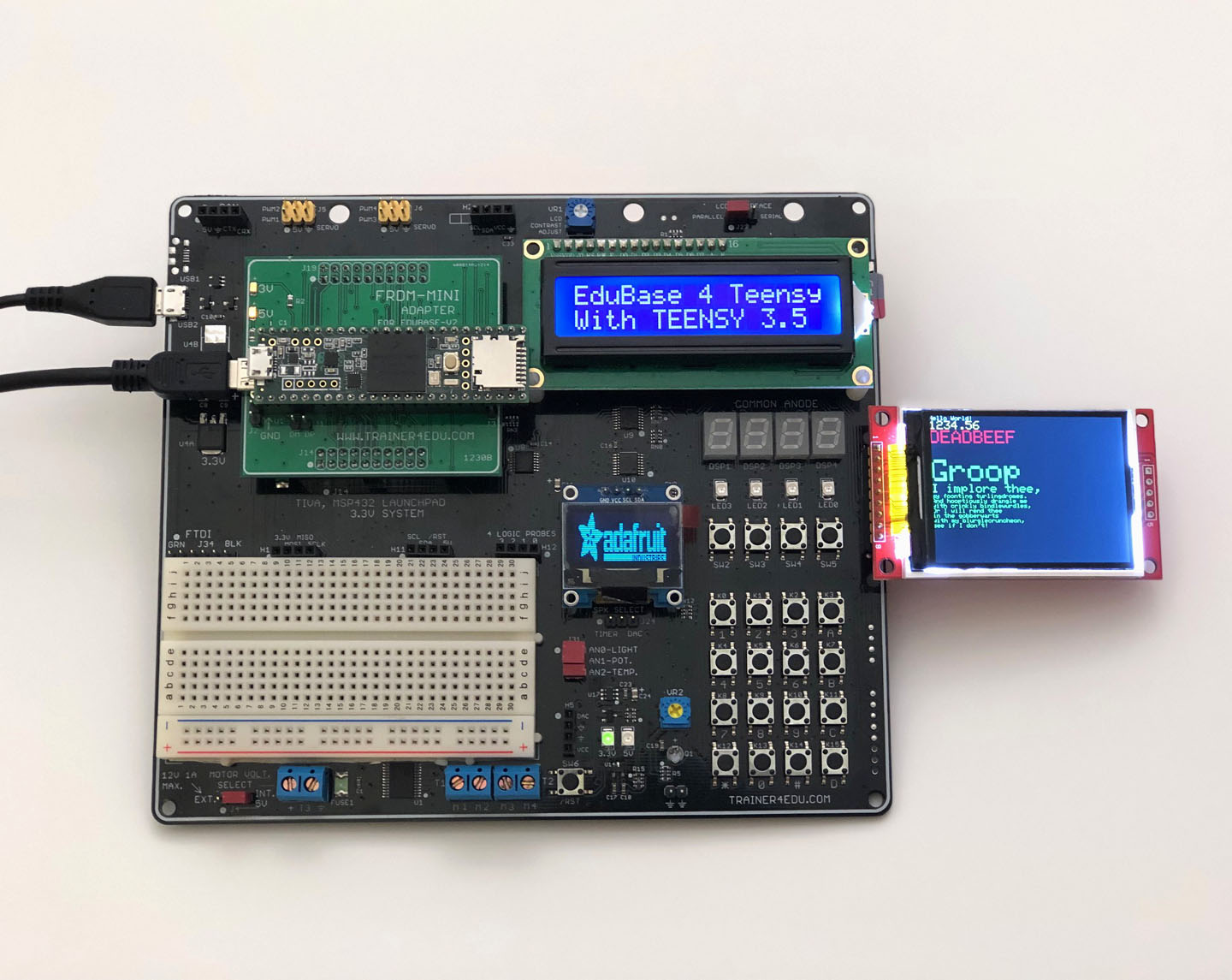

EduBase-V2 trainer Features
The EduBase board can be shared by many ARM modules for multiple EE/ECE courses.
It reduces the cost per course

Teensy 3.5 Features:.

• 120 MHz 32 bit ARM Cortex-M4 MK64FX512VMD12
• 512K Flash, 256K RAM, 4K EEPROM
• 25 Analog Inputs to 2 ADC modules with 13 bits resolution
• 2 Analog Outputs (DACs) with 12 bit resolution
• 20 PWM Outputs (Teensy 3.6 has 22 PWM)
• SDIO SD interface
• I2S Audio
• 14 Hardware Timers
• 6 Serial Ports
• 3 SPI Ports
• 3 I2C Ports
• 2 CAN modules
• 42 breadboard friendly I/Os
• 5 Volt Tolerance On All Digital I/O Pins
• PCB size: 62.3mm x 18.0mm / 2.5" x 0.7"
